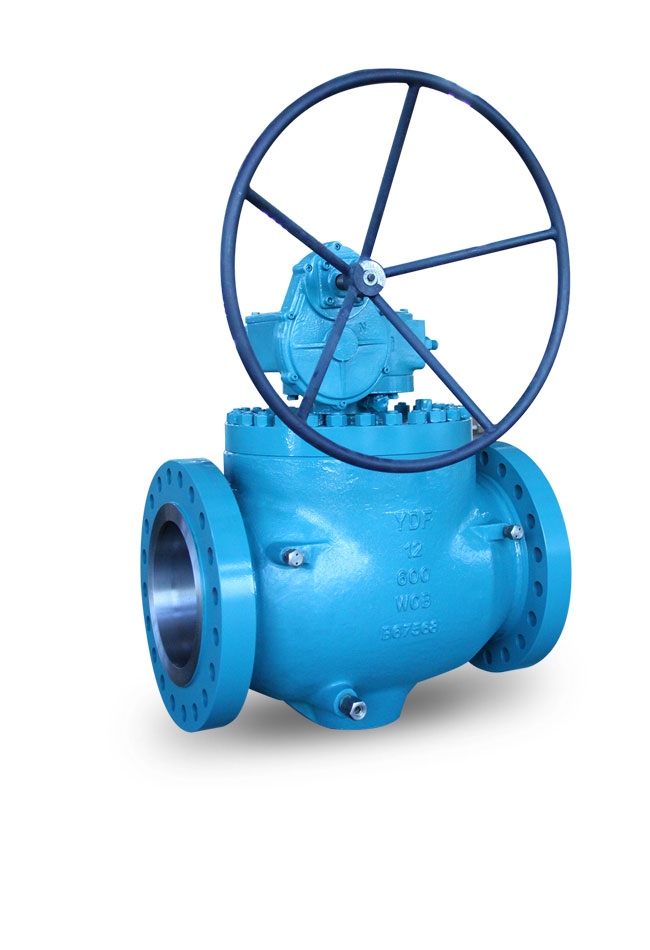

TOP ENTRY TRUNNION MOUNTED BALL VALVE

YDF top entry ball valves are designed, manufactured and tested in accordance with API 6D and ASME B16.34.Can meet API 607 sixth edition and API 6FA third edition specification requirements. The valve size range is from 2 inch to 36 inch, pressure rating is from 150LB to 2500LB. Top entry ball valves are capable for on line maintenance, there may replace or repair the ball, seat or soft seals after strip the cover, so YDF top entry ball valves have been widely used for oil & gas pipeline.

Products Range

Size: 2"~42"
Rating: 150LB~2500LB
Body Materials: Carbon Steel, Stainless Steel etc.
Trim: A105+ENP,13Cr, F304, F316
End Connection: RF, RTJ, BW
Operation: Lever, Gear, Motor, Pneumatic
